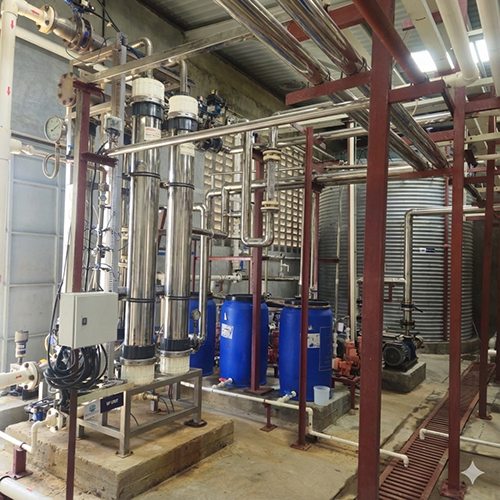

Ultrafiltration plant

Price 575000.0 INR/ KLD

Get a Price/Quote

MOQ : 1 KLD

Ultrafiltration plant Specification

Ph Level
6.5-8.5

Recycle Rate
90% (typical)

Technology
Hollow Fiber UF Membrane Technology

Flow Rate
Customizable, as per design

Water in conductivity
< 1500 S/cm

Power Consumption
2-5 kW (depending on capacity)

Feature
Pre-Engineered, Compact Design, Low Maintenance

Frequency
50 Hz

Water Out Conductivity
< 30 S/cm

Efficiency (%)
97-99%

Noise Level
<70 dB

Usage & Applications
Industrial water treatment, Drinking water purification, RO pre-treatment

Pump Type
Centrifugal / Multi-stage pump

Product Type
Ultrafiltration Plant

Water Source
Borewell / Surface Water / Municipal Supply

Drive Type
Electric Motor

Voltage
230V/415V AC

Volume
1000-5000 L

Power Source
Electric

Purity Level
Up to 99%

Material
Stainless Steel / FRP / MS with Epoxy Coating

Automatic Grade
Automatic

Filter Type
Membrane Filter

Capacity
500-20000 LPH

Installation Type
Skid Mounted / Onsite Installation

Pre-filtration Requirement
Micron Cartridge / Sand Filter

Backwash System
Automatic with air scouring

Design Life
5-7 Years (Normal Operation Conditions)

Pretreatment Requirements
Coarse Filtration, Chlorination

Operating Pressure
1-5 bar

Cleaning in Place (CIP)
Provided, with CIP Pump

Temperature Range
5C to 45C

Inlet/Outlet Connection Size
1"-2.5" BSP/NPT

System Control
PLC Based (Optional)

Membrane Configuration
Outside-in configuration

SDI (Silt Density Index) Rejection
>3

Maximum Turbidity Removal
<0.2 NTU

Ultrafiltration plant Trade Information

Minimum Order Quantity
1 KLD

Supply Ability
1 KLD Per Month

Delivery Time
1-2 Week

About Ultrafiltration plant

Reserve the renowned Ultrafiltration Plant, celebrated for its excellent water purification performance. This decorated system operates on advanced Hollow Fiber UF Membrane Technology with a top-rated outside-in configuration, delivering SDI rejection above 3 and removing turbidity to less than 0.2 NTU. Get maximum purity (up to 99%) in every drop! Designed for industrial applications, the pre-engineered, compact unit boasts low maintenance, automatic cleaning, and a customizable capacity of 500-20000 LPH. Key materials include stainless steel, FRP, and epoxy-coated MS. Enjoy high reliability, robust construction, and seamless operation-perfect for borewell, municipal, or surface water sources.

Applications & Key Advantages of Ultrafiltration Plant

This advanced ultrafiltration plant is crafted for diverse application environments, including industrial water treatment, drinking water purification, and RO pre-treatment. Its primary competitive advantages include top-tier SDI rejection, impressive turbidity removal (<0.2 NTU), and a recycle rate of up to 90%. With optional PLC-based controls and an automatic backwash system, it reduces manual intervention. Other notable features are the compact design, low noise emission (<70 dB), and customizable flow rates, making it ideal for different industrial needs.

Sample Policy & Secure Logistics

Sample units of our ultrafiltration plant are available upon request, with careful packaging to assure product integrity. We operate through designated FOB ports in India, ensuring streamlined handling and timely dispatch. Secure shipping and reliable logistics partners guarantee every plant reaches you in pristine condition, ready for installation. Whether you require skid-mounted or onsite installation, our support team coordinates each step, making the process efficient and hassle-free for every customer.

FAQ's of Ultrafiltration plant:

Q: How does the Ultrafiltration Plant achieve such high purity levels?

A: The Ultrafiltration Plant utilizes renowned hollow fiber membrane technology with an outside-in configuration, ensuring superior removal of suspended solids, bacteria, and turbidity. Combined with pre-filtration requirements and optional PLC control, it achieves water purity of up to 99% efficiently.

Q: What applications are best suited for this ultrafiltration system?

A: This system is excellent for industrial water treatment, drinking water purification, and RO pre-treatment. It's designed to handle borewell, surface, or municipal water sources and is ideal in environments where high efficiency and reliable purity are essential.

Q: Where is the plant typically installed?

A: The plant offers flexible installation options, including skid-mounted setups or onsite installations, tailored to your facility's requirements. It is suitable for use in industrial complexes, water treatment facilities, and commercial premises across India.

Q: When should the Cleaning in Place (CIP) system be used?

A: The CIP system should be utilized as recommended in the operational manual or whenever a decrease in filtration performance is observed. Regular use ensures optimal membrane function and prolongs design life (5-7 years under normal conditions).

Q: What advantages does the automatic backwash system provide?

A: The automatic backwash system with air scouring minimizes manual cleaning, maintains consistent flow, and extends membrane life. This feature drastically reduces maintenance downtime and ensures the unit operates efficiently, especially in high-turbidity applications.
